Super Purchasing for Cnc Processing Center - EDM Taping Electrode – De-Shin Detail:

Ningbo De-Shin offers a complete line of threaded taping electrode for EDM machining process. The products offered has the property of uniform thread, pure & consistent color with stable good quality. It can be used to machining all conductive materials like C45C, SKD11, white steel, tungsten steel, copper products, aluminium, etc.

Material available: copper, copper tungsten(such as W70, W75, W80, W85, etc).

Specification: M1.2, M1.6, M2, M2.5/2.6, M3, M3.5, M4, M5, M6, M7, M8, M9, M10, M12, M14, M16, M18, M20, M22, M24, M27, M30…

Pitch: refer to our standard below or can be designed according to yours.

Thread Length: 35mm, 40mm, 45mm, 50mm, 60mm, etc.

Electrode Length: 45mm, 50mm, 55mm, 60mm, 75mm, etc.

spec pitch
(mm)
shank dia.
(mm)
thread dia.
±0.1(mm)
thread length
±2(mm)
total length
±2(mm)
thread length
±2(mm)
total length
±2(mm)
thread length
±2(mm)
total length
±2(mm)
M1.2 0.25 0.8 0.8 8 20
M1.6 0.35 1.2 1.2 15 45
M2.0 0.4 1.5 1.5 20 45
M2.5/2.6 0.45 1.8 1.8 25 45
M3 0.5 2.2 2.2 35 55 40 60 50 75
M3.5 0.6 3.0  2.8 35 55 40 60 50 75
M4 0.7 3.0  3.0  35 55 40 60 50 75
M5 0.8 4.0  4.0  35 55 40 60 50 75
M6 1 5.0  4.8 35 55 40 60 50 75
M7 1 6.0  5.8 35 55 40 60 50 75
M8 1.25 8.0  6.5 35 55 40 60 50 75
M9 1.25 8.0  7.7 35 55 40 60 50 75
M10 1.5 8.0  8.0  35 55 40 60 50 75
10 8.5 35 55 40 60 50 75
M12 1.75 10 10 35 55 40 60 50 75
M14 2 12 11.7 35 55 40 60 50 75
M16 2 14 13.7 35 55 40 60 50 75
M18 2.5 16 15.2 35 55 40 60 50 75
M20 2.5 18 17.2 35 55 40 60 50 75
M22 2.5 20 19.2 35 55 40 60 50 75
M24 3 22 20.6 35 55 40 60 50 75
M27 3 24 23.6 35 55 40 60 50 75
M30 3.5 26 26 35 55 40 60 50 75




Product detail pictures:

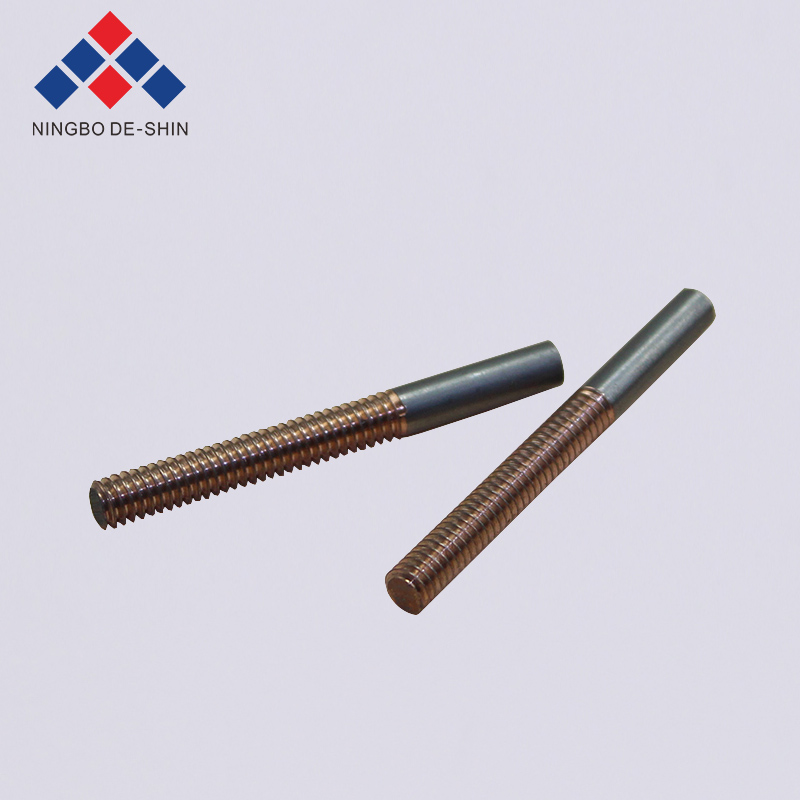

Super Purchasing for Cnc Processing Center - EDM Taping Electrode – De-Shin detail pictures

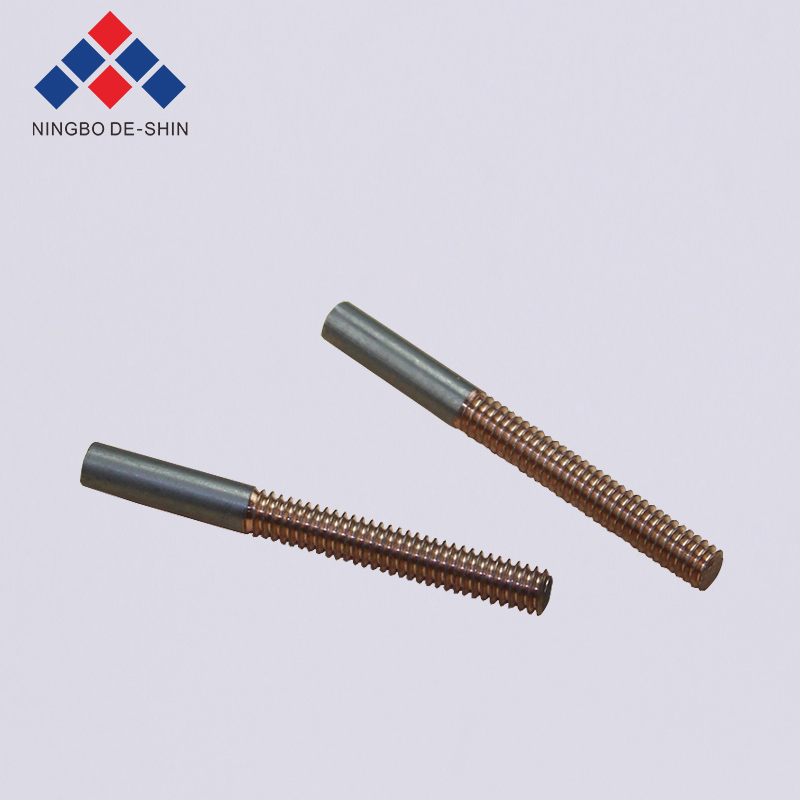

Super Purchasing for Cnc Processing Center - EDM Taping Electrode – De-Shin detail pictures

Super Purchasing for Cnc Processing Center - EDM Taping Electrode – De-Shin detail pictures

Super Purchasing for Cnc Processing Center - EDM Taping Electrode – De-Shin detail pictures
