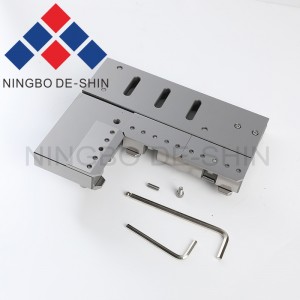

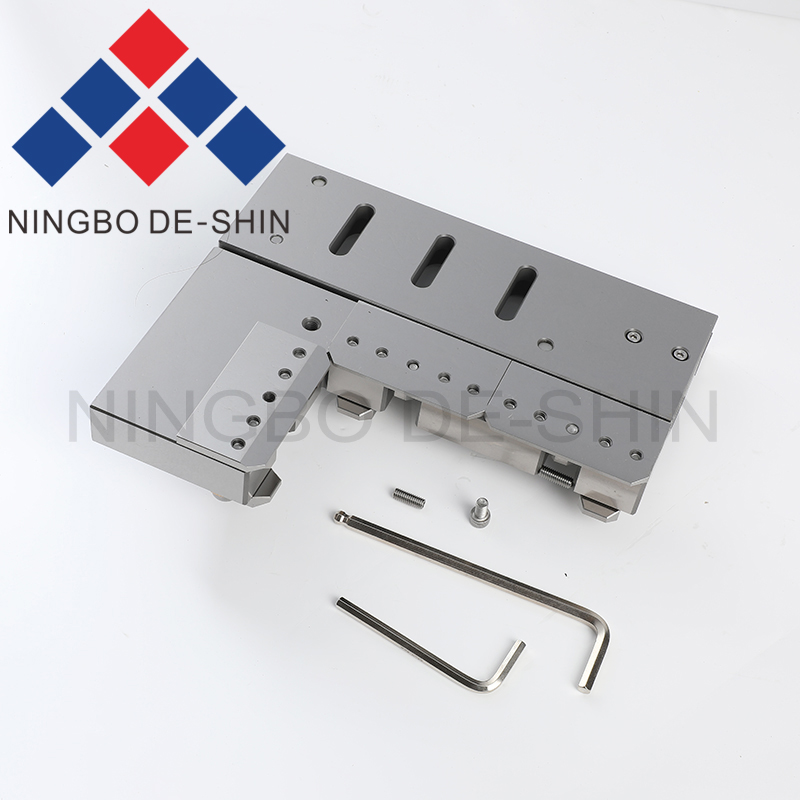

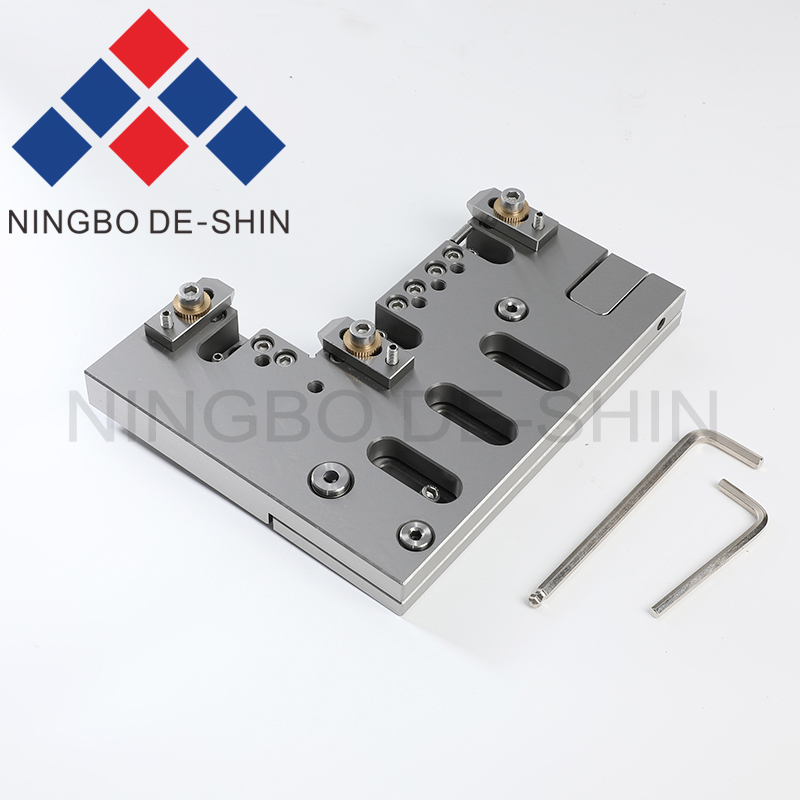

Adjustable wire cut clamp, Precision wire cut pallet with adjustment function DS-210018, 3A-210018

Product name: Adjustable wire cut clamp, Precision wire cut pallet with adjustment function DS-210018, 3A-210018

Model No.: DS-210018, 3A-210018

Characteristics: the material is stainless steel, have done vacuum harden treatment and deeply cold treatment to HRC50~55 before doing the grinding process, the essence is not easy to deformed. The vise is precise adjustable in horizontal, parallel and X,Y,Z axis.

Parallelism: Within 0.003/100mm

Squareness: Within 0.005/100mm

Load: Max 8KG

Net weight: 4.5KG

Note: Red mark is forbidden to disassemble
