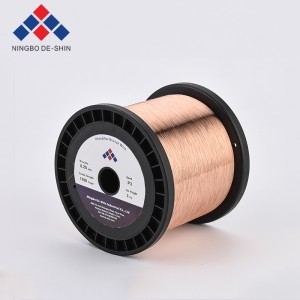

Phosphor Bronze Wire
Phosphor Bronze Wire
●Chemical Composition: 2-8%Sn, 0.1-0.4%P, Cu+Sn+P≥99.5%.
●Alloy No.:
GB: QSn10-1, QSn6.5-0.1, QSn7-0.2, QSn8-0.3, QSn4-0.3, QSn4-3….
DIN: CuSn4, CuSn5, CuSn6, CuSn8….
JIS: C5111, C5101, C5191, C5210….
ASTM: C51100, C51000, C51900, C52100….
ASTM: C51100, C51000, C51900, C52100….
●Diameter: 0.1-1.2mm
●Characteristic: High strength, hardness and elasticity; excellent spring properties; good resistance to
corrosion, wear and fatigue.
●Application: Electrical contacts, musical strings, brushes, spring, fasteners, clips, switch components, and cold headed screws, rivets bolts, welding rods, wire cloths, spectacle frames.
●100% traceability of each spool of wire produced.
●Total in-house inspection guarantees product quality.
Product Detail
Product Tags
Technical Specification
| Product | Core Material | Coating Material | Tensile Strength | Conductivity | Color | |
| Phosphor Bronze Wire | as per demand | None | 1000N/mm2 | 19%IACS | Bright Light Red | |
Unit: kg
| Ø (mm) | 0.1 | 0.15 | 0.20 | 0.25 | 0.30 | |
| Ø (inch) | 0.004 | 0.006 | 0.008 | 0.01 | 0.012 | |
| P3 | 3 | 3 | 3 | |||
| P5 | 5/6 | 5/6 | 5/6 | |||
| P10 | 10 | 10 | 10 | |||
| P15 | 20 | 20 | ||||
| DIN125 | 3.5 | 3.5 | 3.5 | |||
| DIN160 | 7/8 | 7/8 | 7/8 | |||
| DIN200 | 15/16 | 15/16 | ||||
| DIN250 | 25 | 25 | ||||
